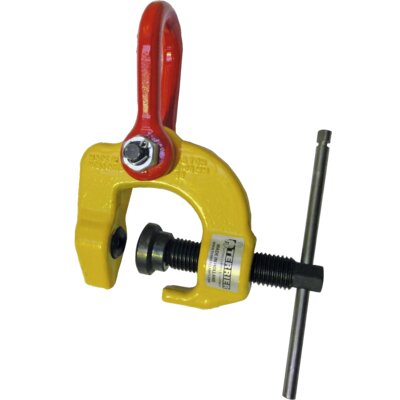

Universal Screw-Lifting Clamp TSCC/TSCC-W

Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. Can also be attached upside down and be used as a (temporary) lifting point.
Model TSCC : standard screw clamp.
Model TSCC-W: With enlarged jaw opening.

Features:

  • Special uni

Show more

Product number:

Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. Can also be attached upside down and be used as a (temporary) lifting point.
Model TSCC : standard screw clamp.
Model TSCC-W: With enlarged jaw opening.

Features:

  • Special universal design ensures multi-purpose application of lifting steel structures.
  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied.
  • Lightweight design for easy handling.
  • Tough quality heavy duty drop forged body.
  • Forged alloy components, where required.
  • Maintenance-friendly, easy to exchange parts which are available upon request.
  • No minimal WLL needed.
  • Marking: CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: -40°C up to +100°C.
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
