Lifting Eye TP

E-mail Get PDF

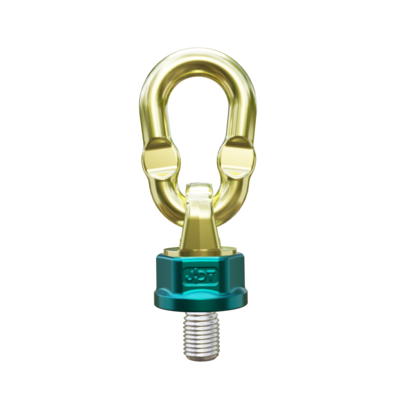

The Theipa Point lifting eye is a rotatable attachment point that can be loaded in all directions. The eye is equipped with a ball bearing swivel so that it can be rotated under load and this ensures that the eye is in the right direction when loaded.
The link can pivot and therefore also can be fol

Show more

Show all variants

Log in to webshop
Product number:

The Theipa Point lifting eye is a rotatable attachment point that can be loaded in all directions. The eye is equipped with a ball bearing swivel so that it can be rotated under load and this ensures that the eye is in the right direction when loaded.
The link can pivot and therefore also can be folded aside when not in use.
The Crimpfeature ("pinch spots") on the link prevents the link from kinking and the galvanized coating provides an optimal corrosion protection

Available on request:
- Different thread and/or lengths
- Equipped with RFID Chip
- Thread adapter: female-female or female-male

  • Material: Eye and swivel of alloy steel
  • Marking: CE-marked, UKCA-marked, WLL.
  • Finish: Galvanized coating - Paint
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1

Filters & subcategories

Show results

Load diagram

Kind of attachment


Load 1

Load 6

Load 2

Load 5

Load 3


Load 4

Number of legs

1
1
2
2
2

3+4
3+4
Angle of inclination

0°
90°
0°
90°
0°-45°
45°-60°
0°-45°
45°-60°
Code
Thread
Load capacity









tons







TP 0,7
M 10
1,0
0,5
2,0
1,0
0,7
0,5
1,0
0,75

M 12
1,4
0,7
2,8
1,4
1,0
0,7
1,4
1,0

M 14
2,0
1,0
4,0
2,0
1,4
1,0
2,12
1,5
TP 1,4
M 16
2,8
1,4
5,6
2,8
2,0
1,4
3,0
2,12

M 20
3,4
1,7
6,8
3,4
2,4
1,7
3,55
2,5

M 24
3,4
1,7
6,8
3,4
2,4
1,7
3,55
2,5
TP 2,5
M 20
5,0
2,5
10,0
5,0
3,55
2,5
5,3
3,75
TP 4
M 24
8,0
4,0
16,0
8,0
5,6
4,0
8,5
6,0

M 30
8,0
4,0
16,0
8,0
5,6
4,0
8,5
6,0
TP 6,7
M 30
12,0
6,7
24,0
13,4
9,5
6,7
14,0
10,0
TP 8
M 30
12,0
8,0
24,0
16,0
11,2
8,0
16,0
12,0
TP 10
M 36
15,0
10,0
30,0
20,0
14,0
10,0
21,2
15,0
TP 12,5
M 42
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0

M 45
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0

M 48
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0
TP 17
M 42
20,0
13,0
40,0
26,0
18,0
13,0
27,0
19,0

M 45
25,0
17,0
50,0
34,0
23,5
17,0
35,0
25,0

M 48
25,0
17,0
50,0
34,0
23,5
17,0
35,0
25,0

M 56
25,0
18,0
50,0
36,0
25,0
18,0
37,5
26,5
TP 20
M 64
25,0
20,0
50,0
40,0
28,0
20,0
42,5
30,0
TP 28
M 64
32,5
28,0
65,0
56,0
38,0
28,0
58,0
42,0

M 72
32,5
28,0
65,0
56,0
39,0
28,0
58,0
42,0

M 80
32,5
28,0
65,0
56,0
39,0
28,0
58,0
42,0
TP 35
M 80
40,0
35,0
80,0
70,0
49,0
35,0
74,0
52,5

M 90
40,0
35,0
80,0
70,0
49,0
35,0
74,0
52,5
TP 40
M 80
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0

M 90
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0

M 100
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0
