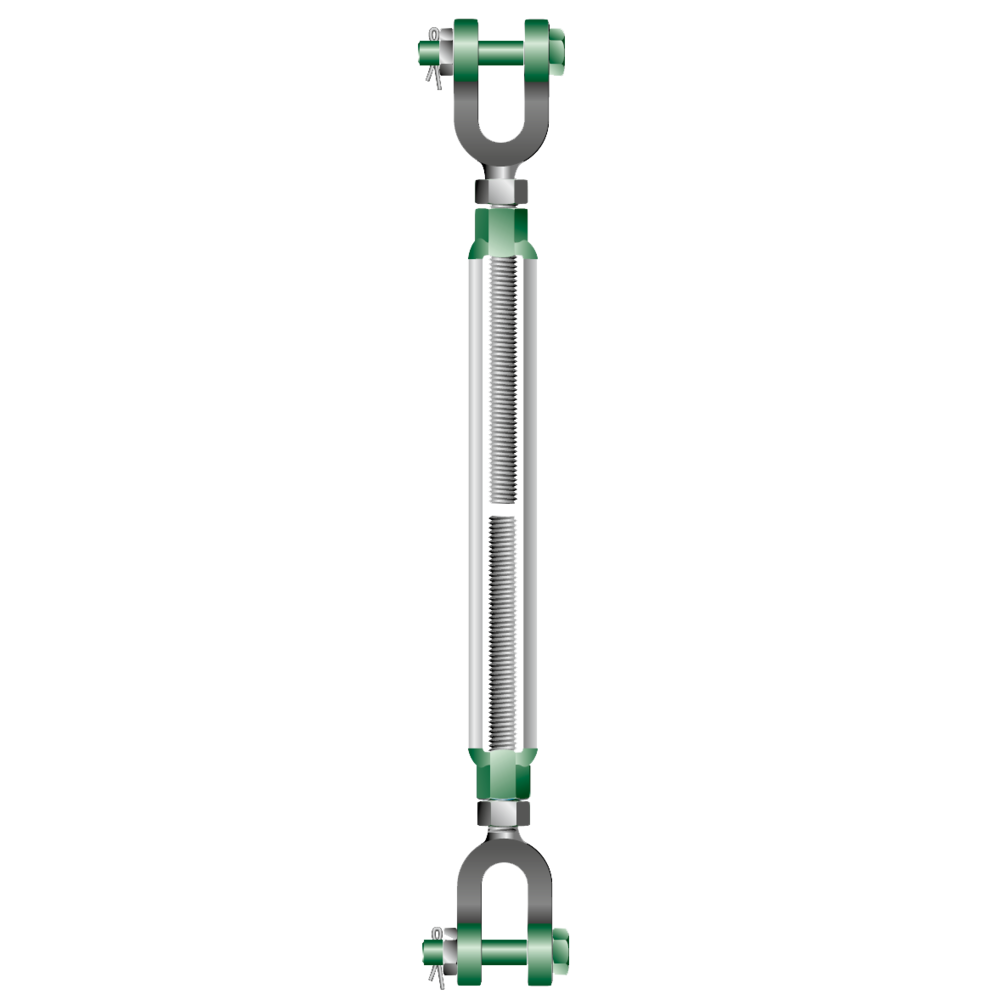

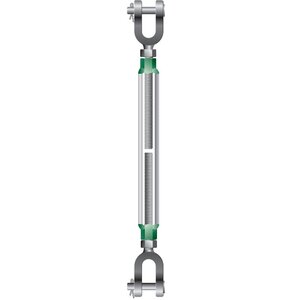

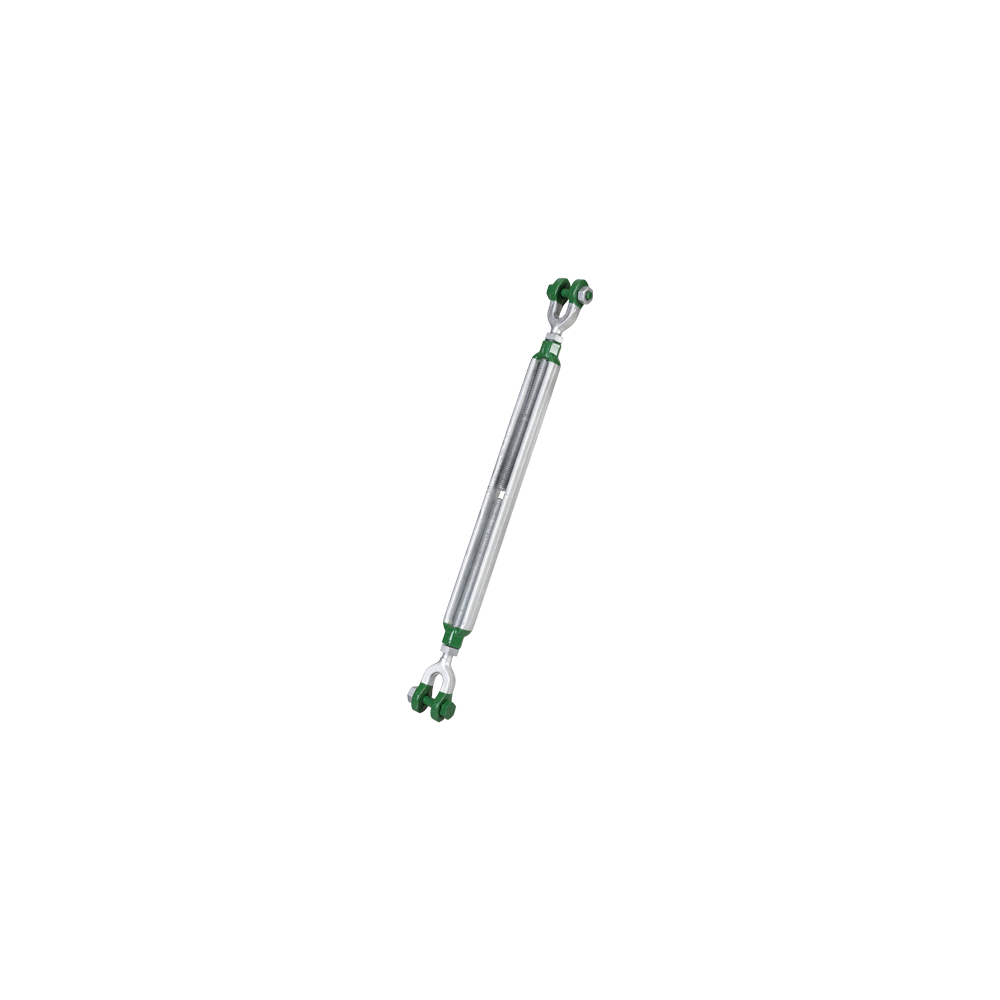

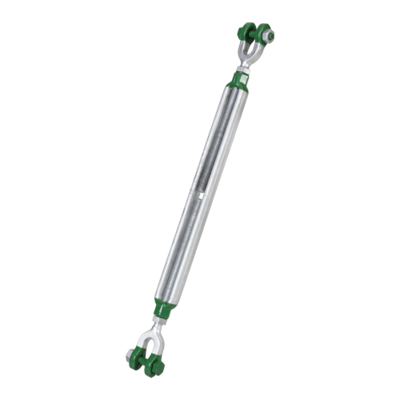

Turnbuckle Jaw - Jaw Polar BN G-6333, Green Pin®

Turnbuckle with jaw-jaw end-fitting and safety bolt for use under low temperatures, generally to ASTM F1145-92.

This turnbuckle can be used for rigging or tensioning wire, rope, rods etc. It is designed for in-line rigging, tensioning, or lashing and can be used in lifting applications.

Standard

Show more

Product number:

Turnbuckle with jaw-jaw end-fitting and safety bolt for use under low temperatures, generally to ASTM F1145-92.

This turnbuckle can be used for rigging or tensioning wire, rope, rods etc. It is designed for in-line rigging, tensioning, or lashing and can be used in lifting applications.

Standard: Generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b.

  • Material: Drop forged alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: Hot dipped galvanized
  • Note: Jaw ends up to and including 5/8" are fitted with bolts and nuts, sizes 3/4" and up are equipped with bolts, nuts and cotter pins
  • Safety factor: 5:1
  • Grade: 8
