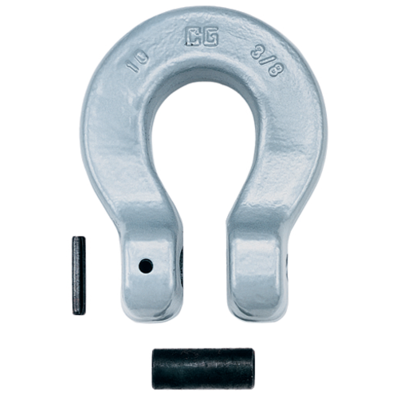

Chain Coupler Crosby S-1325A

Features:

  • Locking system that provides for simple assembly and disassembly – no special tools required.
  • Designed to connect Grade 100 chain fittings produced with “Engineered Flat” to Grade 100 chain.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Individually Proof Tested to 2-1

Show more

Product number:

Features:

  • Locking system that provides for simple assembly and disassembly – no special tools required.
  • Designed to connect Grade 100 chain fittings produced with “Engineered Flat” to Grade 100 chain.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • Material: Forged Alloy Steel - Quenched and Tempered.
  • Marking: Chain size, code and grade.
  • Finish: Painted.
  • Safety factor: 4:1
  • Grade: 10
