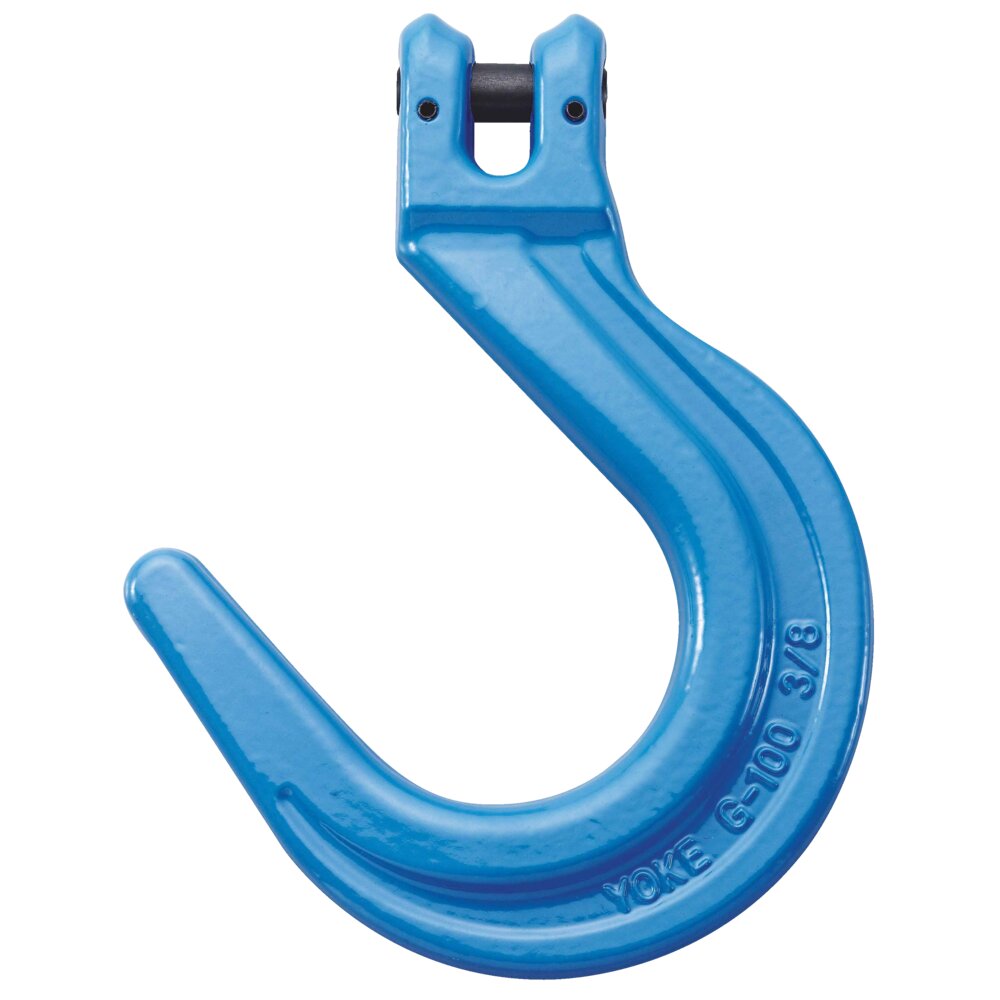

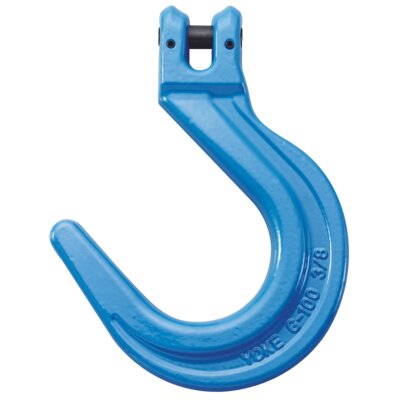

Clevis Foundry Hook X-046 Grade 10

At least 25% greater WLL than traditional Grade 8 products.
Testing according to DIN PAS 1061 and ASTM A952/A 952M.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Des

Show more

Product number:

At least 25% greater WLL than traditional Grade 8 products.
Testing according to DIN PAS 1061 and ASTM A952/A 952M.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Designed for the assembly of chain slings where wide throat openings are necessary.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, Size, grade, manufacturer ID, traceability.
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-1
  • Warning: Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.
  • Safety factor: 4:1
  • Grade: 10
