Steel Wire Rope verosteel 8

Product information

  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Double parallel lay construction
  • Attribute icon

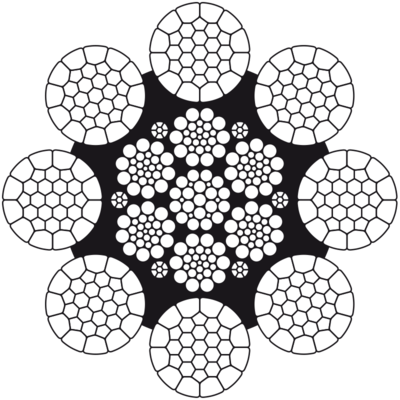

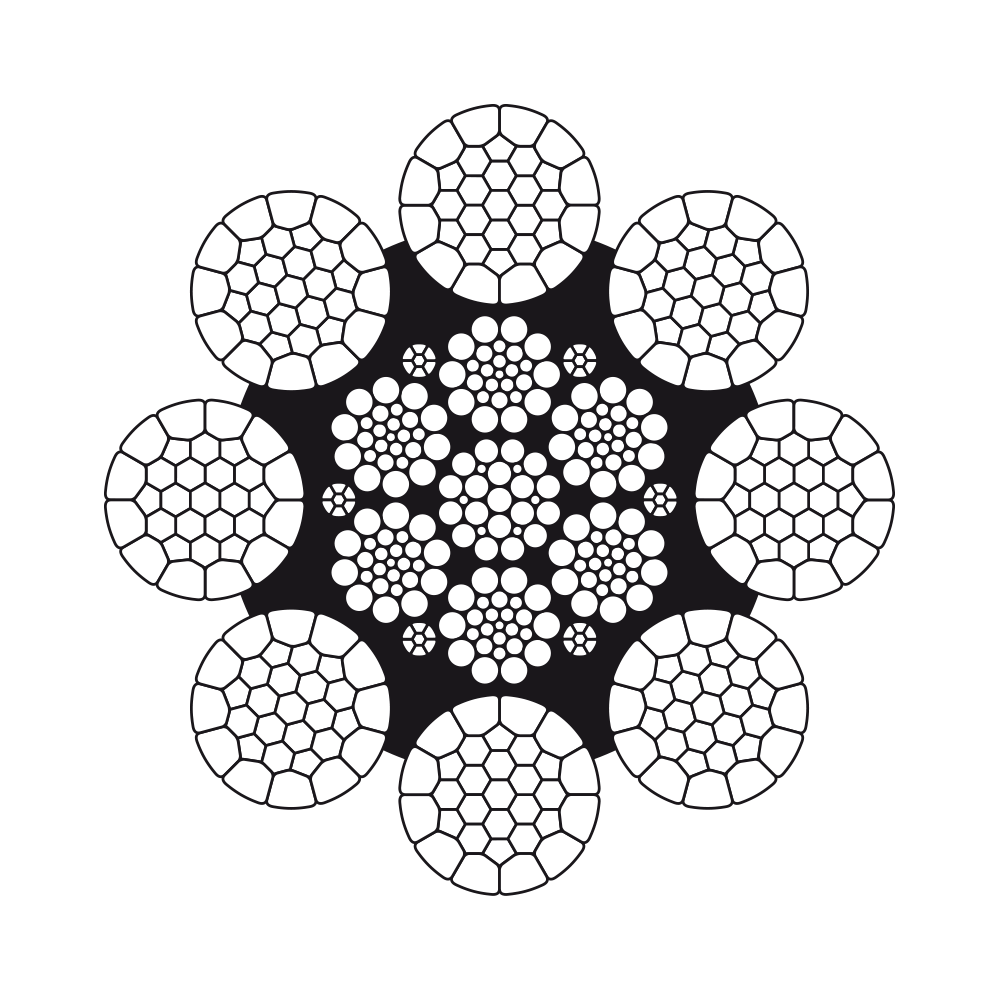

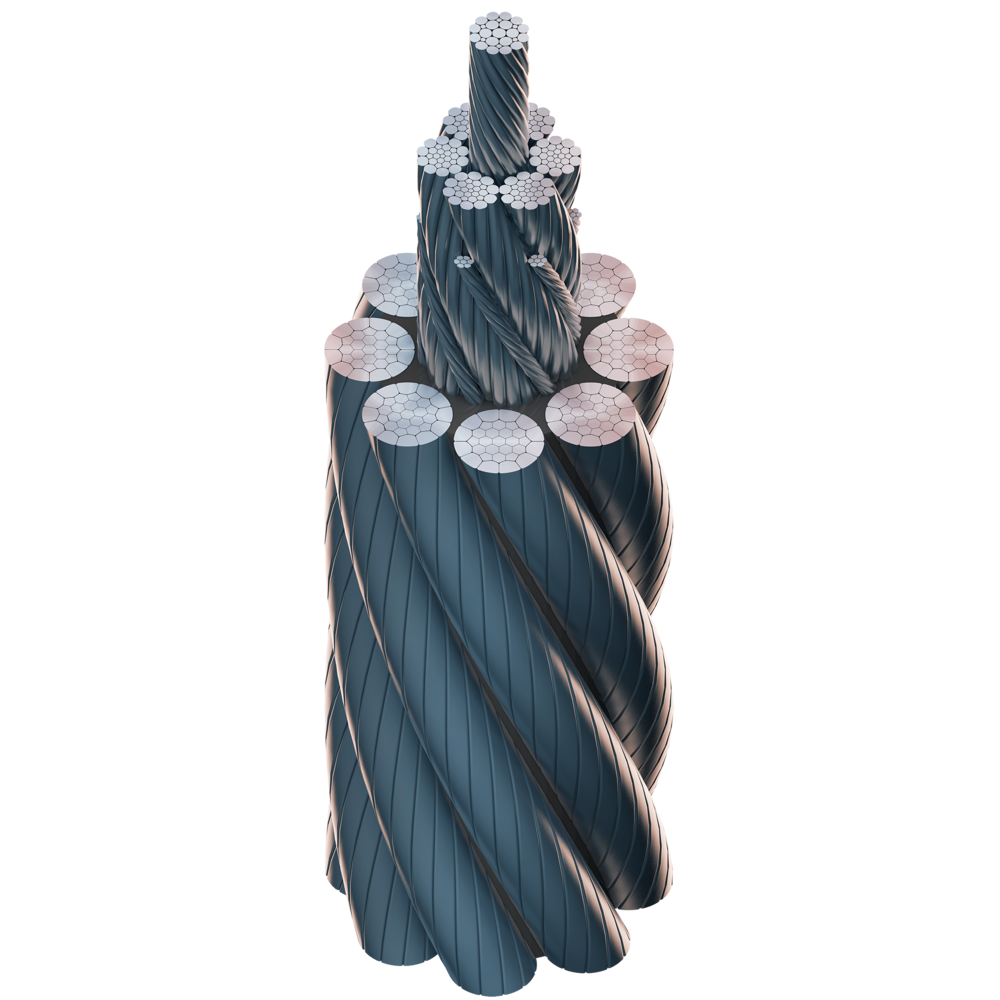

Wire rope construction: verosteel 8 is 8-strand non-rotation-resistant rope with compacted outer strands.

Features:

  • Intensive lubricated and produced either in galvanized or in ungalvanized wires.
  • Provides excellent spooling behavior on multilayer drum.
  • Very flexible rope construction with high abrasion resistance and good service life.
  • Recommended in application with high environment temperature.

ISO 4309
Rope Category No:
Up to 42mm RCN.09, 43-48mm RCN.11, > 48mm RCN.13.

  • Marking: According to standard
  • Standard: EN 12385-4
  • Warning: verosteel 8 may not be used with a swivel.
  • Fill factor: 0.702
  • RCN: 09
  • Tolerance Ø: +2% to +4%
16
  • Select property
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
1,960
  • Select property
  • 1,960
  • 2,160
Bright
  • Select property
  • Bright
  • Galvanized
sZ
  • Select property
  • sZ
Select type
  • Select type
  • Fused and tapered
  • Cold cut
  • Special terminals (CERTEX will contact you)
Select type
  • Select type
  • Fused and tapered
  • Cold cut
  • Special terminals (CERTEX will contact you)
Select type
  • Select type
  • Drum
  • Plastic bobbin
  • Wooden Cross
  • Coil
  • Suppliers choice
You can only send a quotation for this item as some product information is currently not available
Product number: 103101604070329
