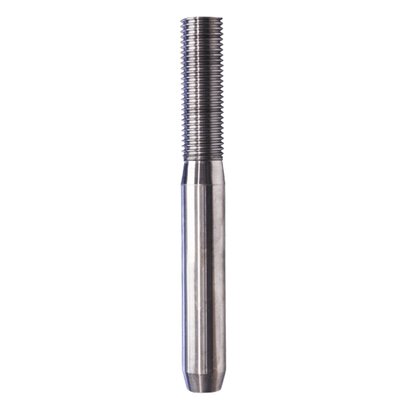

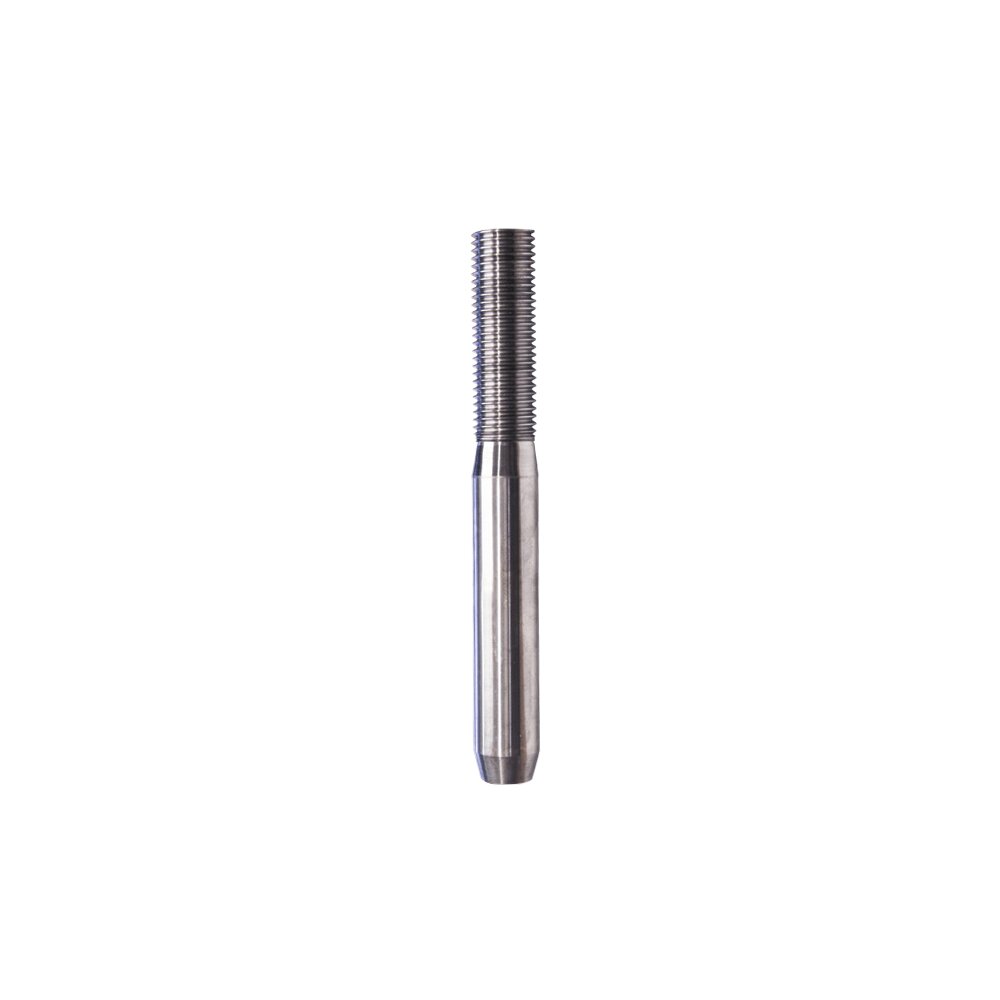

Swage Terminal Talurit® STTT-R

The STTT-R swage terminals are validated according to the TALURIT® system for mechanical splicing. Swage terminals are made from special high-quality carbon steel. Controlled mechanical properties by our special treatment for cold swaging.

The STTT-R swage terminals have an efficiency rating of m

Show more

Product number:

The STTT-R swage terminals are validated according to the TALURIT® system for mechanical splicing. Swage terminals are made from special high-quality carbon steel. Controlled mechanical properties by our special treatment for cold swaging.

The STTT-R swage terminals have an efficiency rating of more than the required 90% of MBL according to the type testing requirement of the EN 13411-8 standard, which includes fatigue testing. In many cases and by ordinary break tests it is common to reach 100% based on the catalog strength of the wire rope.

APPLICATIONS
Swage terminals or sockets have a wide range of applications from stay wires in bridges to crane ropes and pendant lines. As per the TALURIT system validation, we can offer a range that is suitable for many types of special wire ropes with high tensile grades.

  • Features: This terminal is normally used in supporting load applications with requirements of high-performance ropes, grade 2160.
  • Material: TALURIT-Steel, fine grain. Special treatment for cold swaging.
  • Marking: According to standard
  • Temperature range: -40°C up to 150°C
  • Finish: Ungalvanised
  • Standard: EN 13411-8

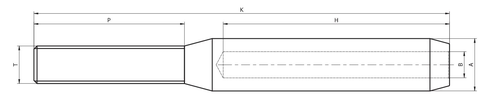

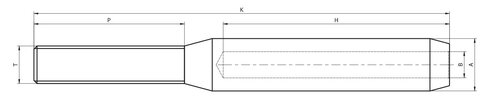

  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
  • Warning: Swage terminals are not recommended for use on fiber core.
